7.1.4 Dolby Atmos Karaoke/Theater Processor
AT-200 è un decoder audio-video professionale integrato per cinema e karaoke, per configurazioni 7.1.4. È stato sviluppato e progettato da ingegneri riconosciuti dall'azienda americana THX ed è certificato Dolby Atmos, DTS:X e HDMI2.0. Essendo un decoder multifunzionale, può essere personalizzato commercialmente per cinema e teatri per un effetto sonoro Hi-Fi 3D immersivo. Tra i primi 10 marchi audio in Cina, Tonewinner vanta oltre 30 anni di esperienza nella progettazione e produzione di prodotti acustici. In qualità di fornitore originale, Tonewinner accoglie sempre con calore distributori, partner e clienti in tutto il mondo.
Modello
AT-200Canali
7.1.4GW
7.2kgTHD
≤0.02%SNR
≥98dB
7.1.4 Dolby Atmos Karaoke/Theater Processor
7.1.4 Dolby Atmos DTS:X Decoder
With Dolby Surround & DTS Neural:X decoding,
the DSP inside can present non-Dolby Atmos and non-DTS:X audio clips
with immersive 3D sound effect.
Immersive Theater & Karaoke Experience
Tailor-made Home Theater
With separate audio and video matrix subgroup & one-click switch button,
it can achieve audio-video synchronization to match different scenes.
Built-in Audio Effects for Better Sound
A theater & Karaoke button for loop selection of "theater mode", "built-in effector",
"external effector" and "pure external vocal"
One-time Setting Long-term Use
It can automatically save the setting data of each HDMI input channel
and automatically recognize the theater or Karaoke mode.
Multi-channel Digital Karaoke Sound
Built-in Karaoke sound parameter
DSP reverberation processing
Multi-level tuning
Built-in feedback exterminator
Dynamic frequency shifting
Anti-howling
Original Easy Test EQ
Get into the EQ testing with the professional microphone ETM-2.
The Mic will auto-capture the sound information and transfer it to the amplifying part to automatically equalize parameters of each channel. The close balance of all channels will bring better sound effect.
Auto measure of the distance between speakers & seating position.
Auto adjustment of delay & sound pressure level.
Auto calibration of speaker frequency response & compensation.
(The ETM-2 microphone is not included)
EQ Setting Introduction
RS232 Protocol
Connect your smart home devices to the RS232 port to
add more fun to your daily life.
OSD English Menu
Simple OSD layer menu with clear options for easy setting.
Friendly for beginners.

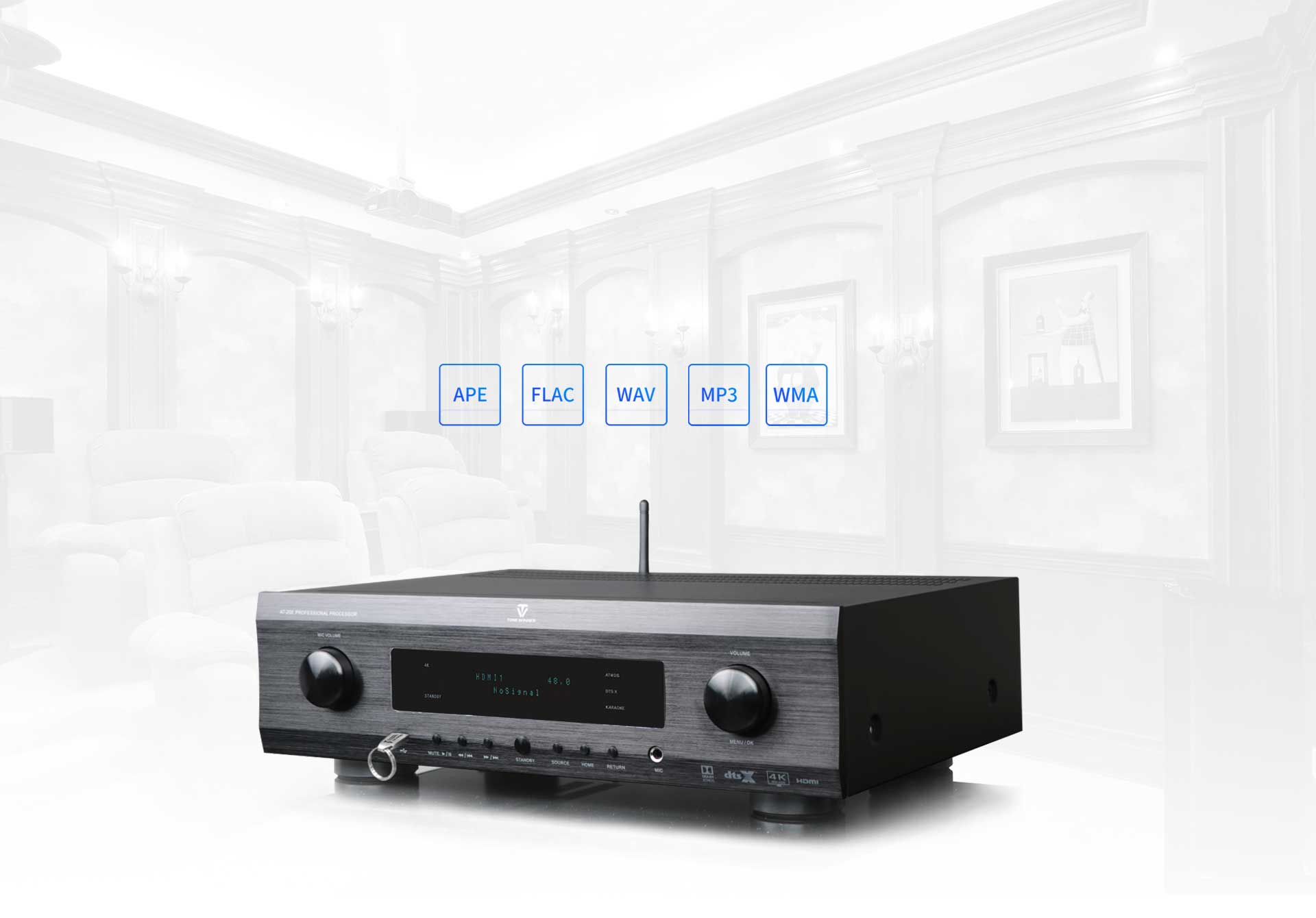

Lossless Music Formats
Support 128G USB disk, TF card & APE, FLAC, WAV, MP3, WMA, etc.

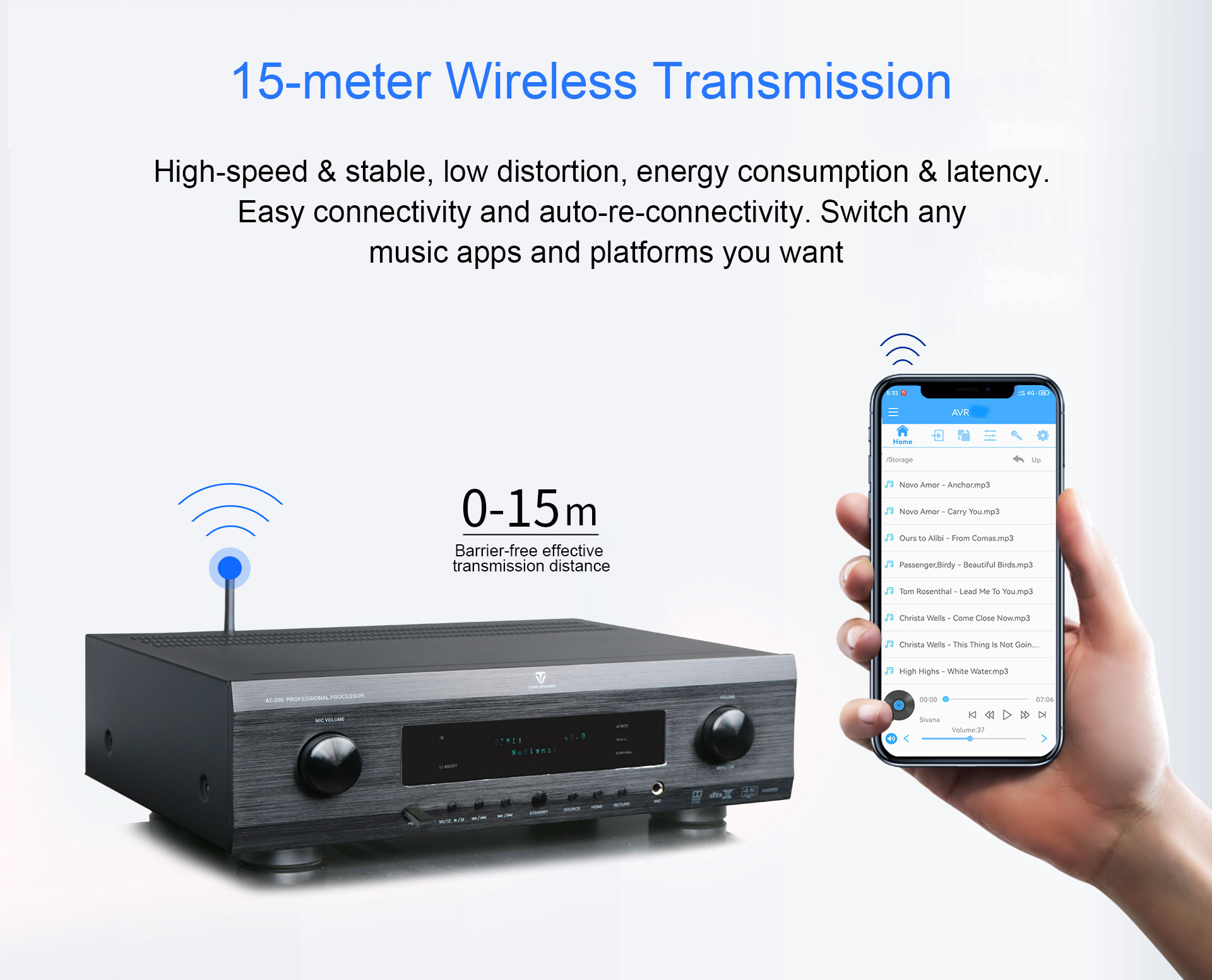

15-meter Bluetooth Transmission
High-speed & stable, low distortion, energy consumption & latency.
Easy connectivity and auto re-connectivity.
Switch any music apps and platforms you want.

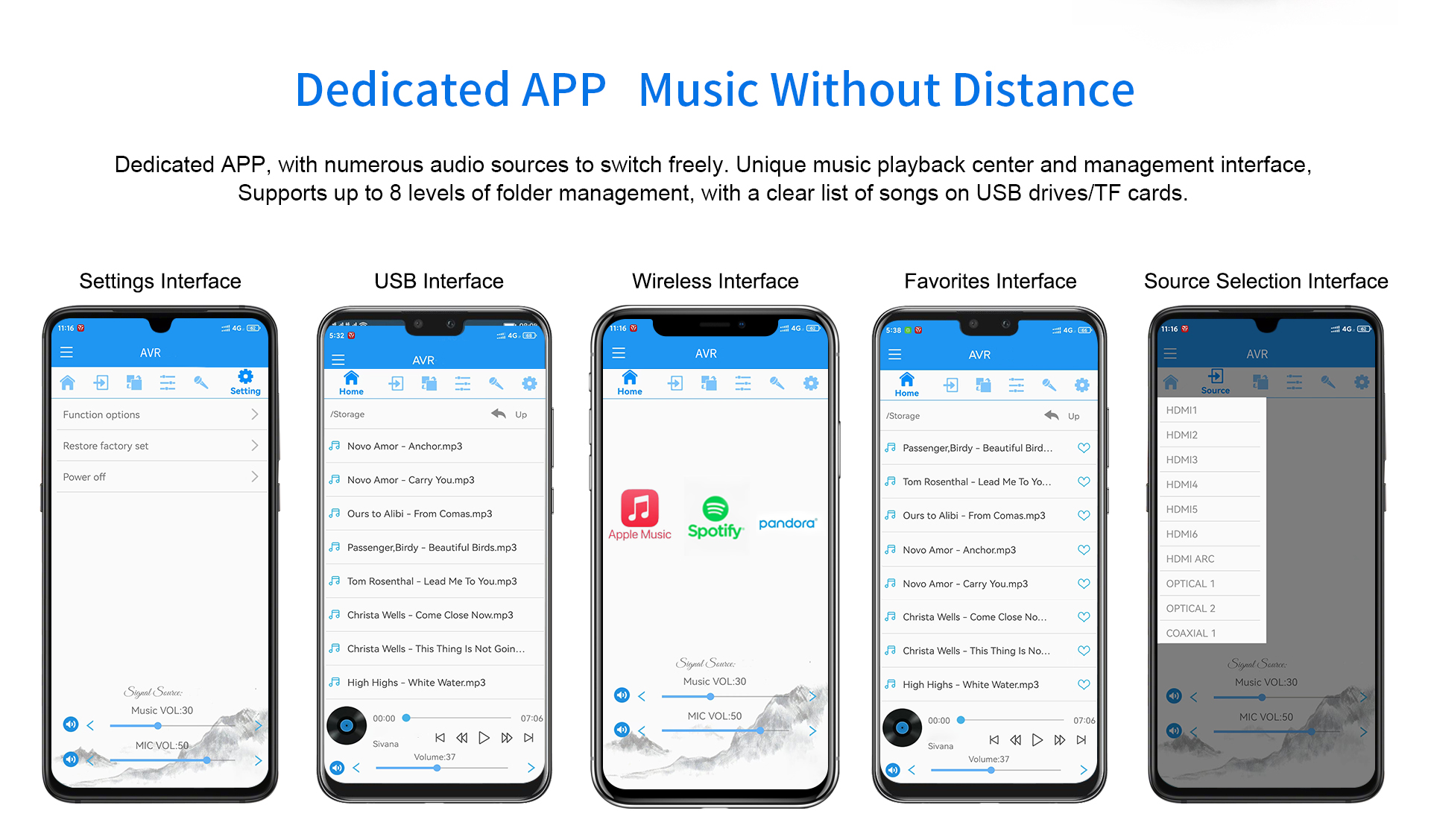

Original APP Control
Original music playing center & management interface.
Multi-level folder management. Song lists of USB disk & TF card on screen.
Easy Firmware Upgrade
Download the latest firmware into a USB disk and connect it to the USB port.
Reboot the machine and the update is actomaticallly done.

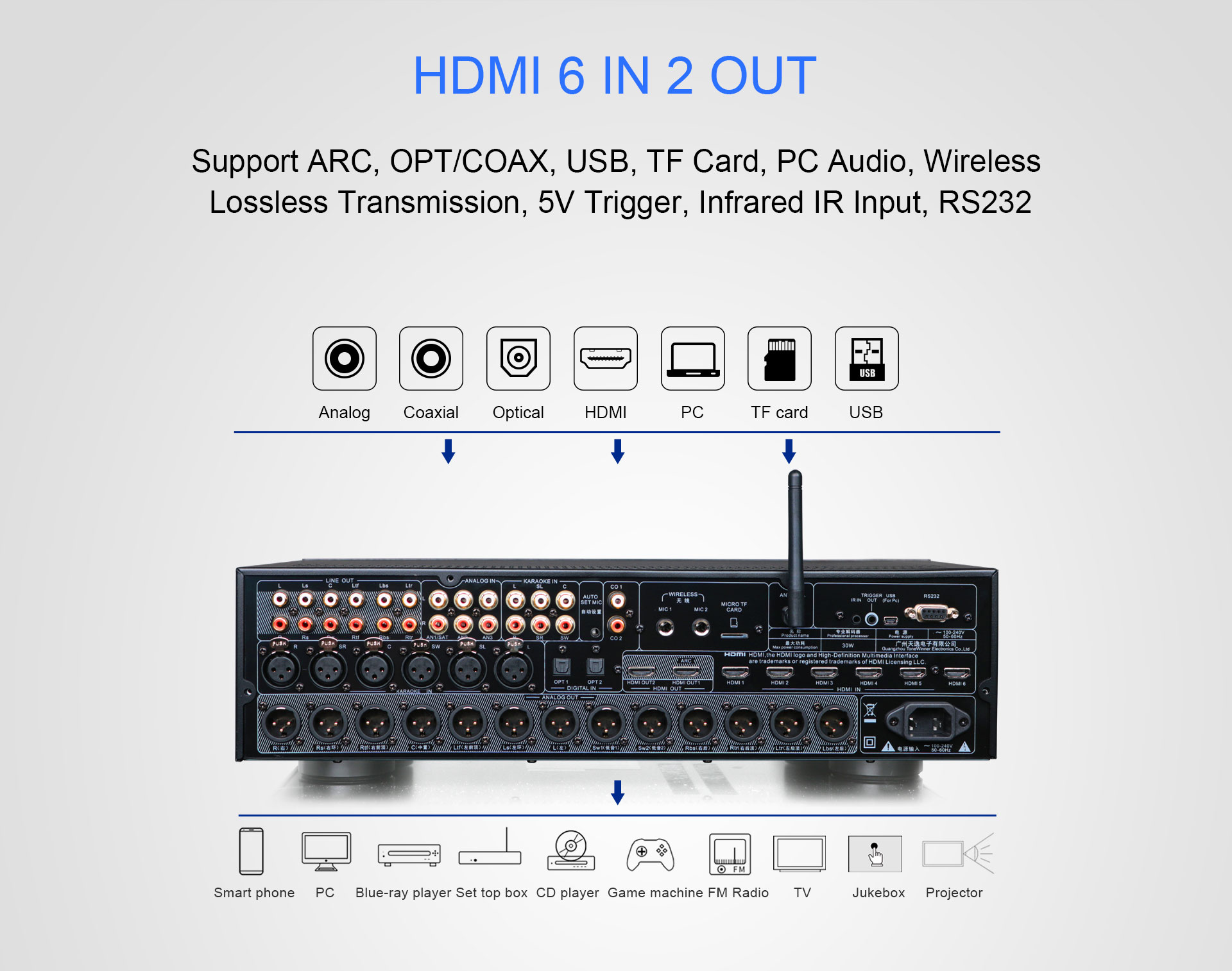

Multiple Connections
Support HDMI ARC, optical/coaxial, USB disk, TF Card, PC Audio,
Bluetooth, 5V trigger, IR input & RS232 protocol.
IR Remote Control
One-click theater & Karaoke switch,
one-click factory reset, and lock for stored setting data.
4K for Life-like Vision
18 Gbps and 3840×2160 4K
bring better contrast and brightness.
It also handles HDMI2.1, HDCP2.2 and
is compatible with HDR series formats.
More Details
Main Features
| 4K, 2K & backward iterations video formats |
Dolby Vision |
| Dolby Atmos, DTS:X & backward HD iterations |
HDR10 |
| HDMI2.1, 3D, 4K |
HLG format |
| Separate audio-video matrix subgroup |
HDMI-CEC ; HDCP2.2 |
| HDMI 2.1 6 in 2 out |
RS232 protocol |
| Optical, coaxial, analog inputs & outputs |
DSP Karaoke effect processing |
| Separate control for EQ, volume control & input control |
5V trigger |
| Auto EQ room calibration |
Microphone APP control |
|
English-labeled EQ guide |
Lock for stored setting data |
|
7.1.4 digital Karaoke |
Setting data backup |
|
Separate setting for Karaoke sound effects |
DSP Karaoke effect processing & |
|
One-click theater & Karaoke switch |
HDMI video output management |
|
Support Bluetooth, U disk, TF card |
Anti-howling |
|
IR extension
|
OSD English menu
|
Specification
|
Audio and video formats
|
audio formats: Dolby Atmos, Dolby True HD, DTS:X, DTS Virtual: X & downward formats |
|
video formats: 2160P60, 1080P60 & backward video formats |
|
|
Input: Bluetooth, analog, optical, coaxial, U disk, TF card, PC, HDMI 2.1 6 in
|
|
|
HDMI support: 4K, 3D, ARC, CEC, standby pass through
|
|
|
Parameters |
Rated input impedance: ＞20KΩ |
|
Rated output impedance: 1000Ω |
|
|
Gain: ≥13dB (Analog direct) |
|
|
THD: ≤0,02% (ponderato A, analogico diretto, 1 kHz) |
|
|
SNR: ≥98 dB (ponderato A, analogico diretto) |
|
|
Frequenza: 10Hz-50kHz (+1/-3 dB, analogico diretto) |
|
|
Diafonia: ＞80 dB (analogico diretto) |
|
| Peso netto: 5,3 kg; Peso lordo: 7,2 kg | |
|
Potenza: da ~100 V a ~240 V (50 Hz/60 Hz) |
|
|
Dimensioni: 431x 317x 130 mm (LxPxA) |
|
|
Connessione: computer, telefono cellulare, TV, proiettore, lettore hard disk, decoder, lettore Blu-ray, ecc. |
|
|
altro |
Applicazione: soggiorno, camera da letto, home theater, ecc. |
|
Accessori: manuale x1, cavo di alimentazione x1, certificato x1, telecomando x1, cavo HDMI 4K x1 |
|
AT-200
|
Rapporto segnale/rumore
|
|
≥20kΩ (ingresso analogico)
|
Separazione dei canali
|
|
1 kΩ
|
Livello massimo per la non distorsione
|
|
≤0,01% (ponderato A)
|
Frequenza
|
|
≥13dB (analogico diretto)
|
Energia
|
|
5,3 kg
|
Dimensione
|
AT-200 è un decoder audio-video integrato professionale per home theatre e Karaoke per l'installazione 7.1.4. Questo preamplificatore con uscita subwoofer per home theater supporta Dolby Atmos, DTS:X, tecnologia video 4K ed è compatibile con 3D, HDR10, Dolby Vision e altri formati video. Ha canali professionali 7.1.4 effetto kKaraoke immersivo e supporto per effetti audio esterni.
Elaborazione audio:
Elaborazione video:
